Simpson Strong-Tie RPB Retrofit Post Base, ZMAX®

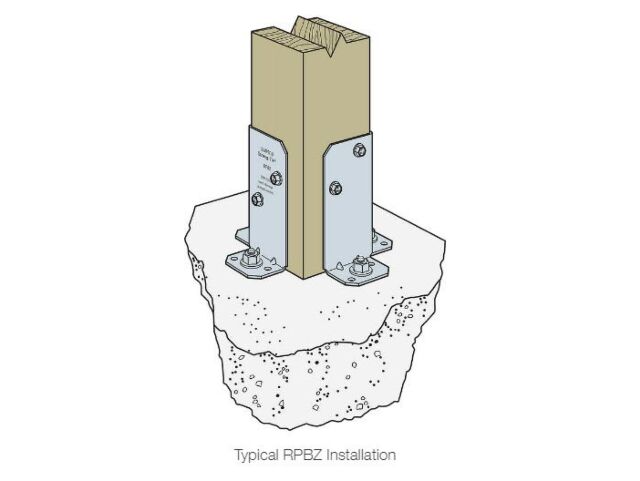

"The RPBZ retrofit post base is designed to reinforce existing posts and columns. The single, versatile model will fit on any size post consisting of a double 2x4 or larger. RPBZ can also be used to reinforce new post-base connections, such as braced carports, patio covers, decks and other structures. The RPBZ can be installed with the CPS composite plastic standoff to meet a 1"" post standoff code requirement. A single RPBZ can be installed on a post that is flush to a corner, and two RPBZs can be installed at away-from-edge conditions to fortify the post-base connection to resist both wind and seismic forces.
Strong-Drive® SDS Heavy-Duty Connector screws install easily and provide excellent holding strength for post-to-flange connections. Additionally, the RPBZ can be purposed as a temporary base fixture for posts when shoring beams. RPBZ comes standard in ZMAX® finish to meet exposure conditions in many environments. See additional Corrosion Information."
$9.95
each
- 1/4 in x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector and base connection fasteners are not provided with RPBZ. Simpson Strong-Tie CPS series composite post standoff sold separately
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations, such as fences or unbraced car ports
| Type | Retrofit Post Base |
|---|---|
| Gauge | 12 ga. |
| Brand | Simpson Strong-Tie |
| Finish | ZMAX® |
| Material | Steel |
| Manufacturer Code | RPBZ |
Fasteners Needed: Nails 16d = 0.162 in. dia. x 3 1/2 in. long, 10d = 0.148 in. dia. x 3 in. long.
