Simpson Strong-Tie HUCQ Heavy Concealed Flange Face-Mount Joist Hanger, for 9-1/4 in thru 14 in. LVL, Galvanized

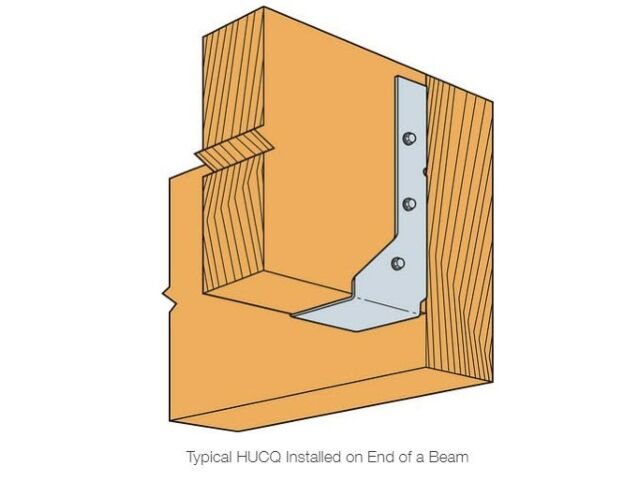

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.
$64.65
each
- Concealed flanges provide cleaner lines for exposed conditions
- HUCQ-series hangers are tested, load rated and code compliant
- Strong-Drive SDS Heavy-Duty Connector screws are included
| Type | Face-Mount Hangers |
|---|---|
| Size | 9-1/2 in. thru 14 in. LVL |
| Gauge | 14 ga. |
| Style | Double |
| Brand | Simpson Strong-Tie |
| Finish | Galvanized |
| Material | Steel |
| Manufacturer Code | HUCQ410-SDS |
"Use all specified fasteners; see General Notes
Joists sloped up to 1/4:12 achieve table loads
When nailing into solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.74"
