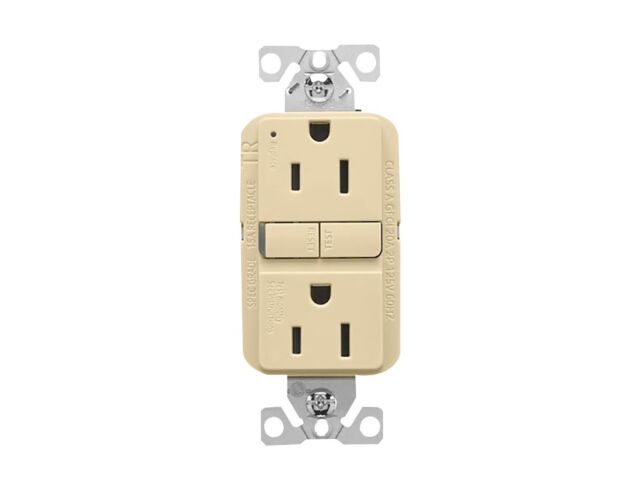

Eaton Wiring Devices TRGF15V Duplex GFCI Receptacle, Ivory
GFCI receptacles are designed with the safety of the user in mind. In commercial and industrial areas like public bathrooms, breakrooms and food service areas, the NEC® requires GFCI receptacles. Arrow Hart self-test GFCI receptacles are UL listed and fully compliant with all of the latest UL943 Class A GFCI and UL498 requirements. The self-test GFCIs conduct an automatic test periodically to ensure GFCI protection. The device will trip and will not reset if GFCI protection is not available. Additionally, GFCIs incorporate a safety lock-out function to protect against miswired line load connections and GFCI circuitry damage.
$27.99
each
- Slimmer design for easy installation, leaving more rom for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- GFCIs incorporate lock out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
- Wider button wells for eay test and reset
- Intuitive LED status indicators for trip and end of life states
- Meats and exceeds 10 kA short circuit testing and UL
| Type | Gfci Receptacles/Switches |
|---|---|
| Size | 2 Pole, 3 Wire |
| Color | Ivory |
| Rating | 15 Amps 125 Volts |
| Brand | Eaton |
| Color Family | Off-White |
| Manufacturer Code | TRSGF15V |
External backwire clamps provide visual confirmation of secure termination
Current Rating: 15 A
Dimensions: 4.19 in H x 1.69 in W
Grounding Type: Automatic
Material: Polycarbonate/Steel/Thermoplastic/PVC
Nema Rating: NEMA 5-15R
Number of Poles: 2
Number Of Wires: 3
Operating Temperature: -35 to 66 deg C
Short Circuit Current Rating:10 kA
Type: Self-Test
Voltage Rating: 125 V
Wire Size: 14 to 10 AWG
Wiring Type: Back Side
