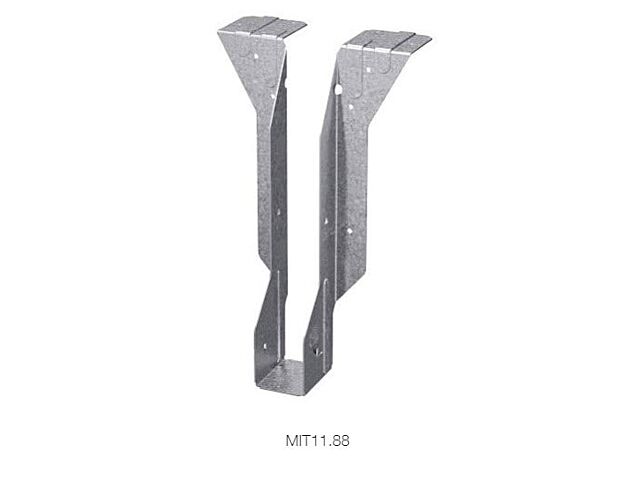

Simpson Strong-Tie MIT Medium Top-Flange I-Joist Hand for 9-1/2 in. 360 Double I-Joist
The MIT is designed to support 90° connections of I-joists to headers. This top-flange hanger features a Funnel Flange™ design allowing for easier placement of members. The hanger also features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting.
$15.90
each
- Features additional triangle holes for additional uplift
- Features optional fastening with PAT for steel applications/header
- Cost-effective solution for standard 90º connections in comparison to welded hangers
| Type | Top-Flange Hangers |
|---|---|
| Size | 11-7/8 in. |
| Gauge | 16 ga. |
| Style | Double |
| Brand | Simpson Strong-Tie |
| Finish | Galvanized |
| Material | Steel |
| Manufacturer Code | MIT3511.88-2 |
Locations are provided for optional nails if additional uplift is needed. Optional uplift nailing requires the addition of properly-secured web stiffeners. See the load tables for minimum required fasteners and allowable uplift loads.
For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T-C-MPLYHEADR).
