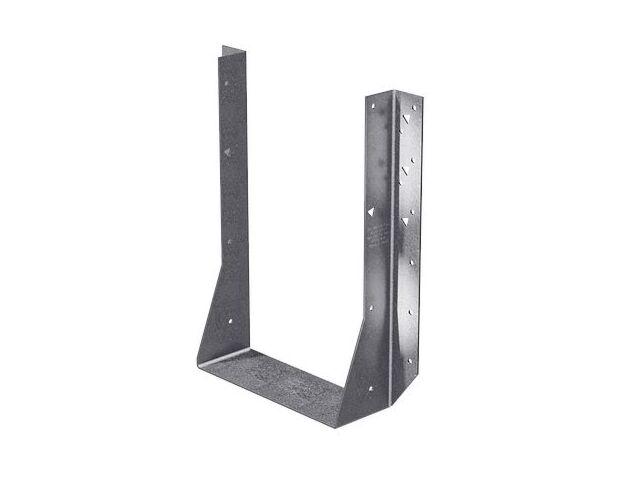

Simpson Strong-Tie HU Heavy Face-Mount Hanger for 11-7/8 in. Double 560 LVL Joist , Galvanized
"The HU is designed for structures requiring additional strength and safety factors. Some models of this heavy-duty, face-mount hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°. Most models have triangle and round holes. To achieve maximum loads, fill both round
and triangle holes with common nails. These heavy-duty connectors are designed for additional strength, longevity and safety factors ."
$48.60
each
- Added triangular holes on most models for additional load capacity
- HU-series hangers are tested, load rated and code compliant
| Type | Face-Mount Hangers |
|---|---|
| Size | 11-7/8 in. |
| Gauge | 14 ga. |
| Style | Double |
| Brand | Simpson Strong-Tie |
| Finish | Galvanized |
| Material | Steel |
| Manufacturer Code | HU412-2 |
Use all specified fasteners; see General Notes
Joists sloped up to 1/4:12 achieve table loads
When nailing into solid sawn carrying members end grain, the allowable load is adjusted by a factor of 0.73
